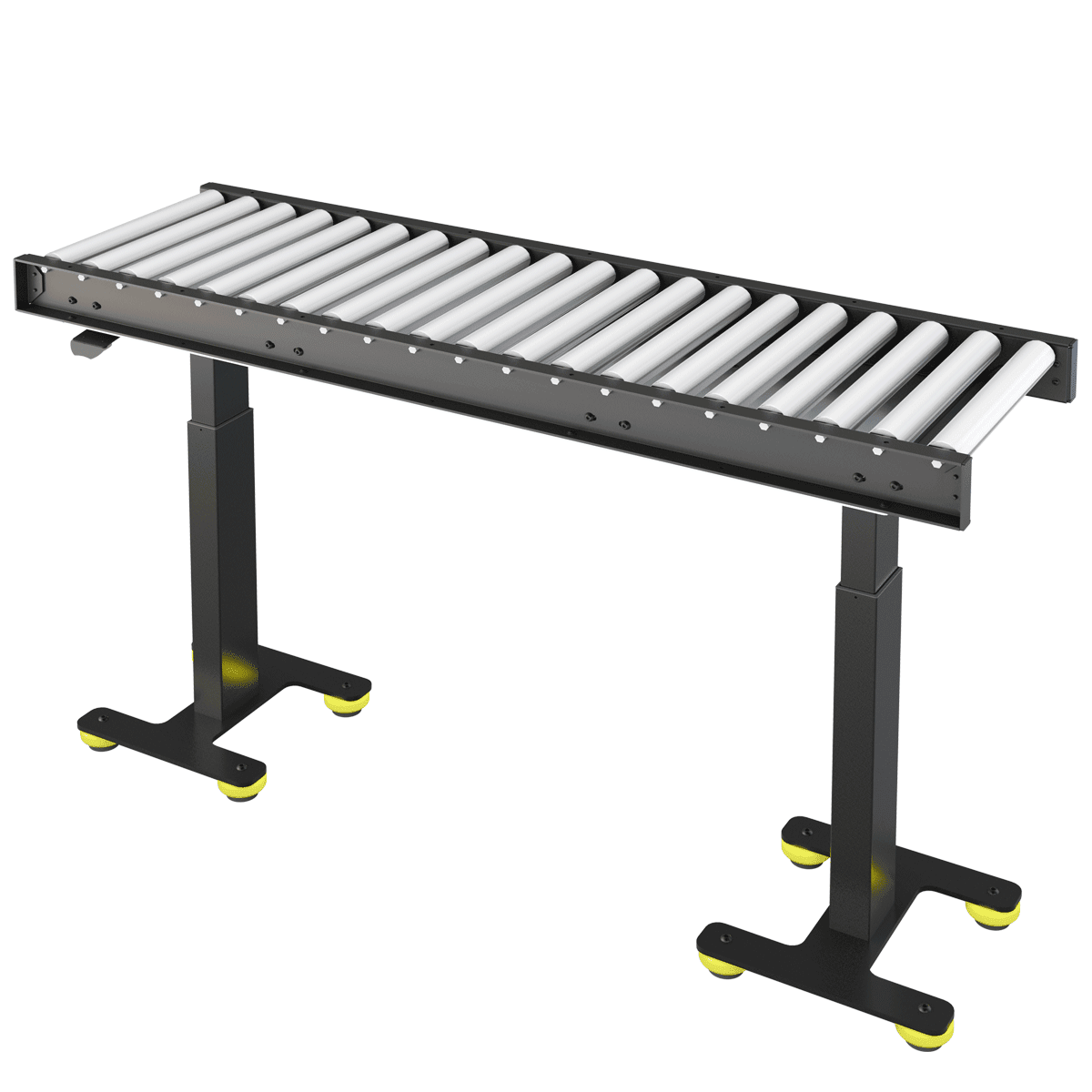

Light Duty Height Adjustable Conveyor
The Light Duty Height Adjustable Conveyor is an efficient way to move parts or light-weight product throughout a facility. With lift power of up to 150 pounds, these conveyors can be paired with our assembly tables to create a production workflow that adjusts to each individual’s ideal working height at the touch of a button.
Specifications
Lift Capacity
150 lbs
Standard Sizes
Starting Height: 30″
Widths: 60″ | 72″ | 84″
Depth: 18″ | 32″
Adjustment
18″ stroke
Stability
Rigid, cold-rolled steel construction
Custom conveyor rollers and 8 gauge steel frame
Anti-vibration leveling mounts or 3/8″ mounting plates for permanent installations
Galvanized steel rollers with spring-loaded axles
Options
Standard Colors
RAL 9003 – Signal White
RAL 7037 – Dusty Grey
OB07 – Matte Black
– Custom paint colors
– Custom laser cutting for branding and logo reproduction
– Custom sizes available
Downloads
Material Handling Product Line
Employee Friendly
Our conveyors are height adjustable, so they fit every user. By focusing on employee ergonomics, you can expect productivity to increase and compensation costs to decline.
Systematically in Sync
This height adjustable conveyor can be programmed to raise and lower in sync with other electronically height-adjustable workstations from BUILT Systems.
Modify to your specific needs
Contact us to request a quote, discuss a custom product design, or schedule a company tour.
